ACQ2206 6 site ELF carrier

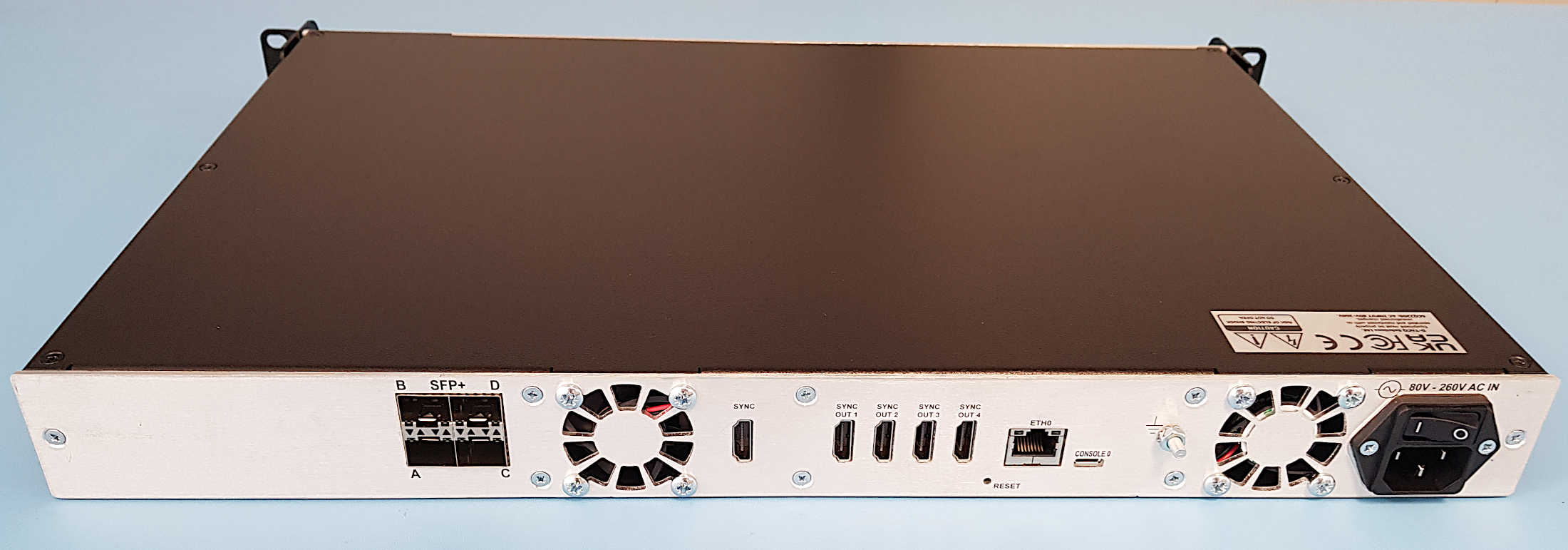

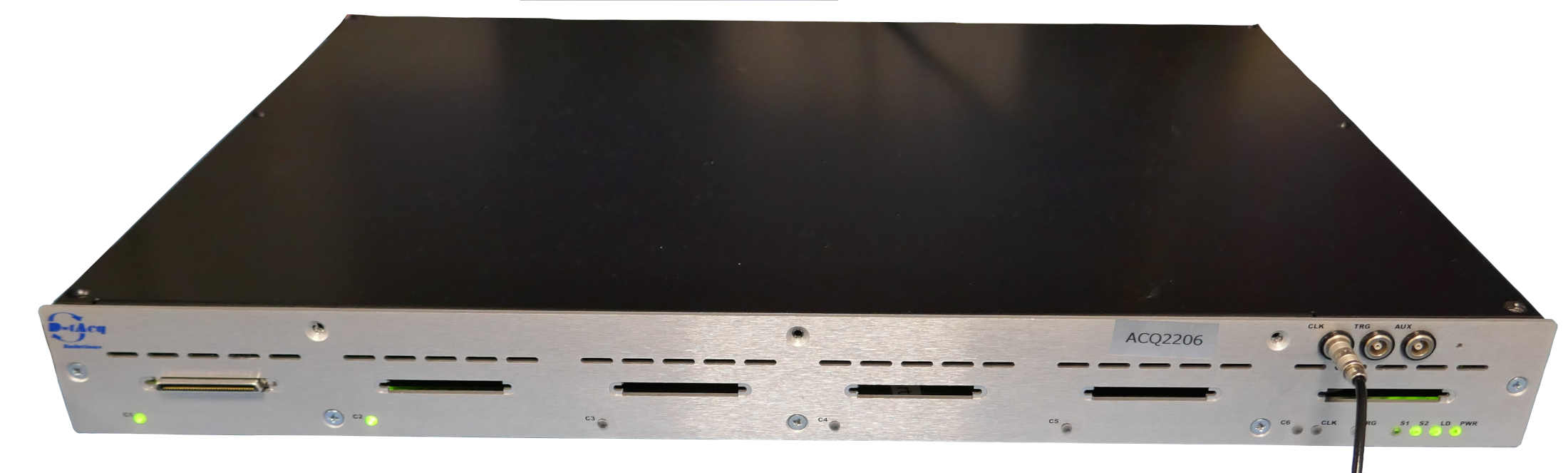

ACQ2206 is an updated version of ACQ2106, with the same front panel with payload up to 6 ELF sites, 192 channels. Fast serial comms links are upgraded from 6 to 10Gbps, the comms module is larger and the a.c. mains power supply is now inside the case. The basic unit ships with a passive SFP cage comms module, and the principle upgrade will be to increase the Hardware UDP Ethernet channel from 1Gbps to 10Gbps. We also offer MGT508, an active comms module with FPGA and 16GB DRAM.

• 6 site ELF carrier.

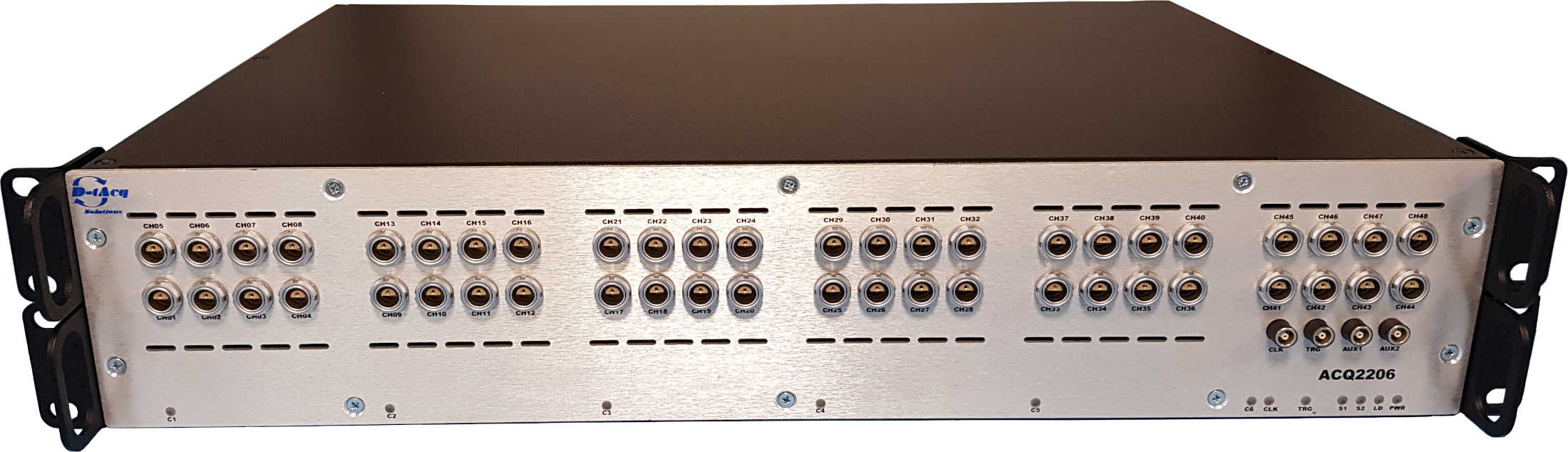

• Up to 192 channels in 1U.
• Large channel count, rackmount system.
• Gigabit Ethernet 1000-T.
• Optional fiber comms MGT483:
  • streams continuous full rate data on SFP+ fiber-optic links.
  • streams data to UDP on 10G Ethernet.
• Optional 16GB DRAM extension MGT508.
  • Stream data at up 2GB/s for up to 7s.
  • MGT508 allocates 2GB DRAM to the embedded CPU system (dual-core A53), leaving 14GB DRAM for capture storage.
• Includes White Rabbit precision timing.
  • Allows ACQ2206 boxes to synchronize at a distance, and
  • Allows for efficient clusters of tightly synchronized boxes.
• alternatively, Local box synchronization using a timing highway 4 way fanout.
