DAQ Appliances

A comprehensive range of Simultaneous Data Acquisition Modules together with a selection of intelligent, networked Module Carriers allows users to easily specify a high performance data acquisition appliance customised to meet their specific requirement.

  • Sample Rates: 100 kSPS to 80 MSPS
  • Resolution: 14 to 24 bit
  • Number of Channels: 4 to 192 per appliance

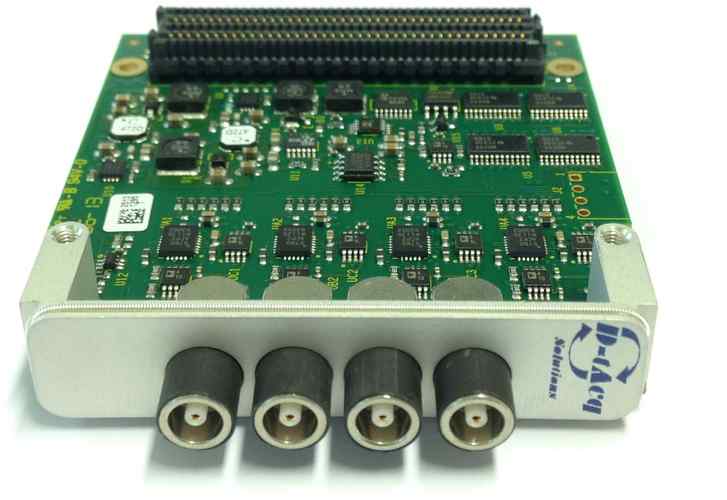

The modules are based on the FMCworld, unique in that it allows IO to connect directly to a FPGAworld device with no additional bus layer, allowing efficient, low cost but high performance modules. D‑TACQ FMC modules fit compatible sites in both our own ACQ1001, ACQ2106 and third party carriers.

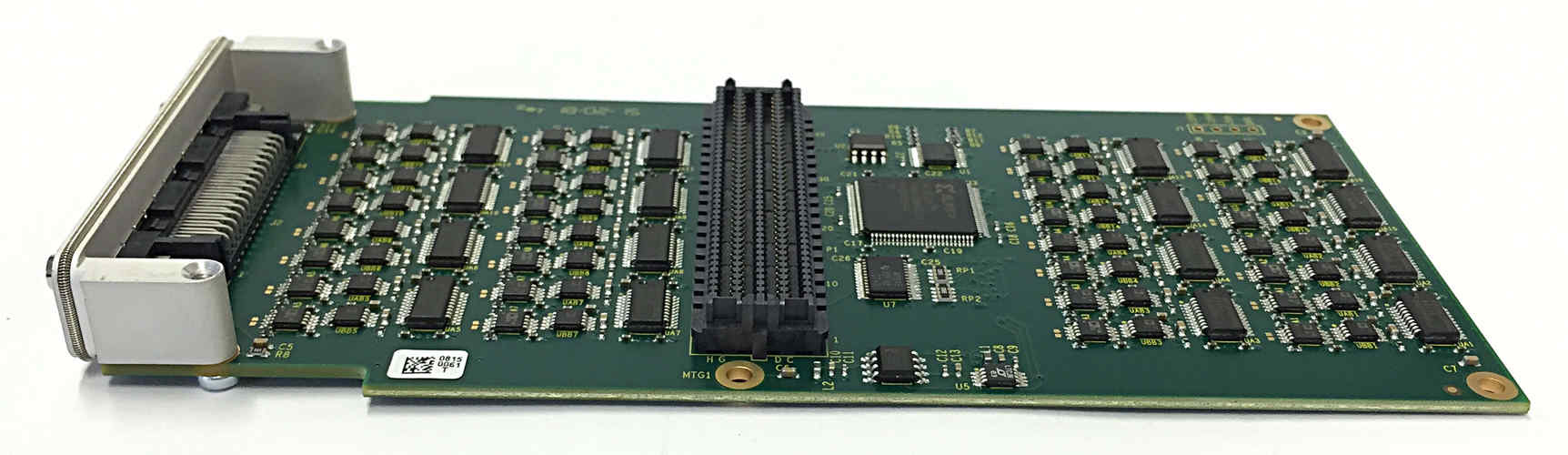

An additional family of larger "ELF" modules fit the same connector and front panel footprint but are physically larger to allow a bigger payload.

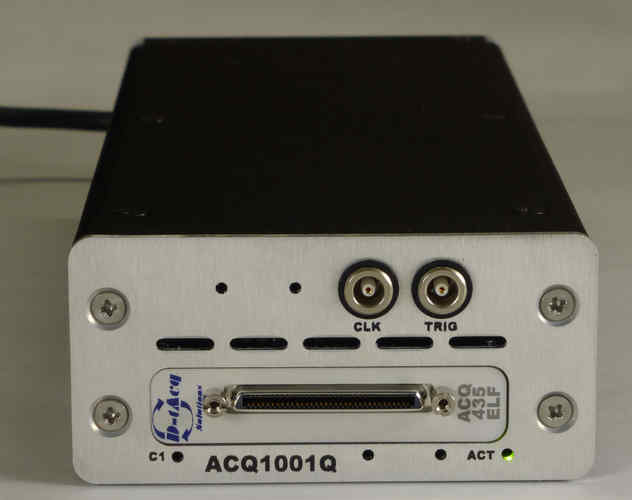

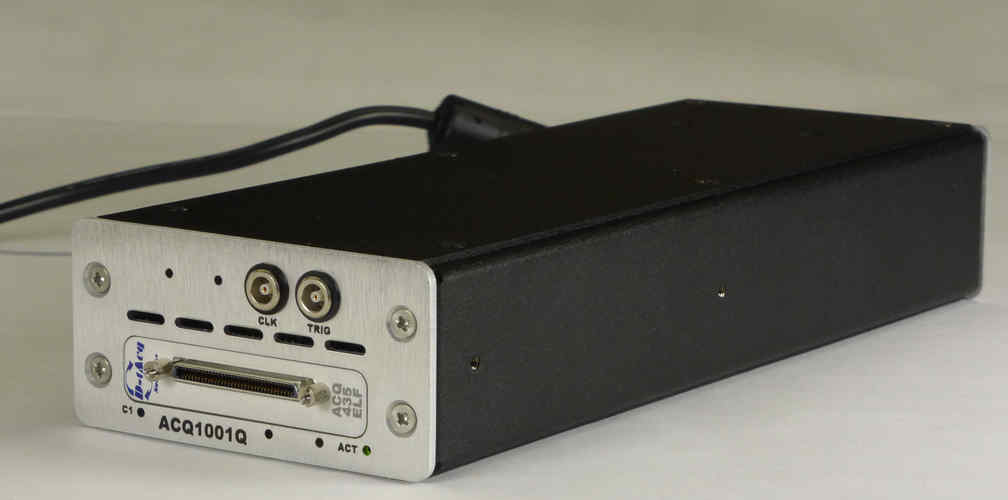

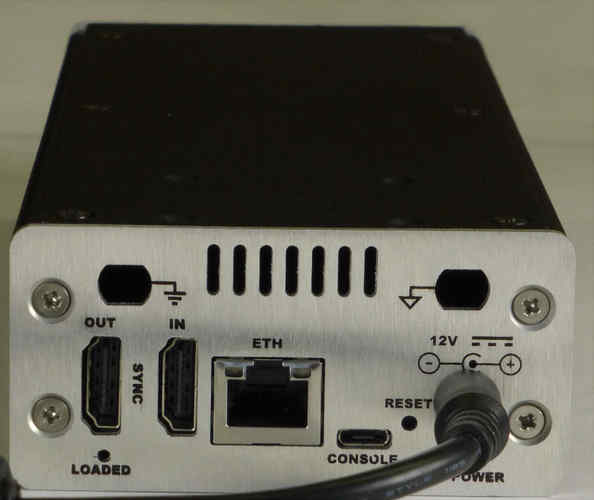

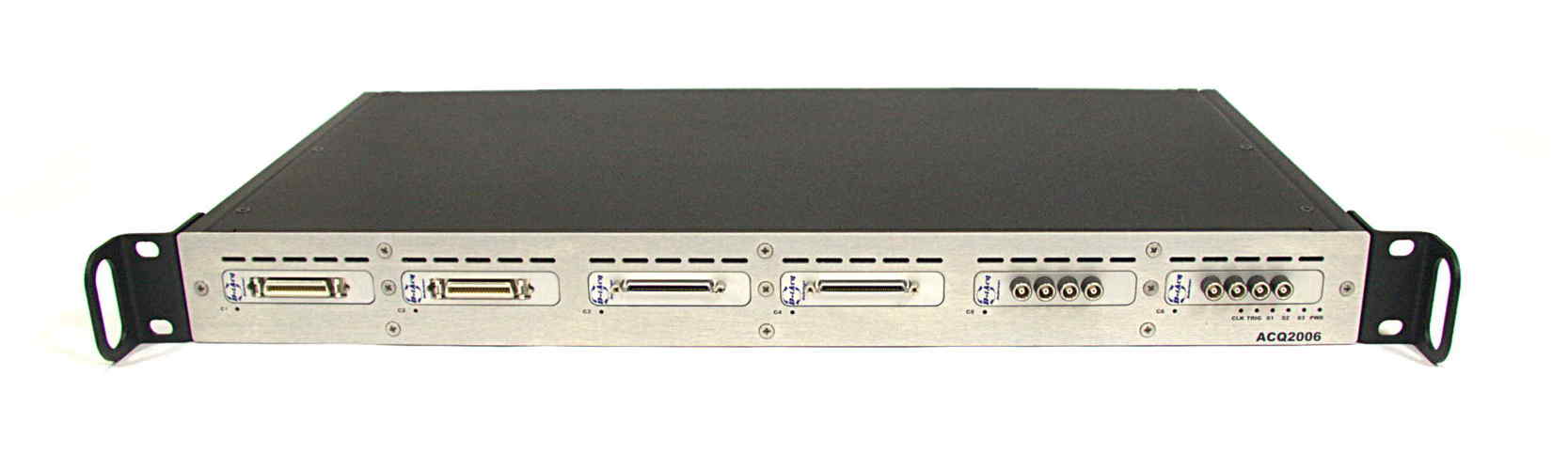

D‑TACQ carrier units support both D‑TACQ FMC and ELF modules. The carriers feature the Xilinx Zynq System-on-Chip architecture, featuring low power and integral FPGA device. Carriers are engineered to allow the maximum DAQ payload in minimum space.
