Announcing ACQ2106-TIGA

ACQ2106, the modular DAQ Appliance mainframe from D-TACQ is now available as specialised Timing Generator

  • White Rabbit IEEE1588, High precision - shared time with resolution 100nsec.
  • 2 x 4 channel Pulse Generators PG : each Pulse Generator may be programmed with a unique delay pattern, generating precise delays with 10nsec resolution in the range 0..200s from trigger.
  • 4 White Rabbit Triggers
  • 2 Additional Front panel trigger inputs
  • 2 Programmable Clock outputs.
  • 4 standard ACQ2106 signal ports - CLK, TRG, AUX1, AUX2 are retained.
  • 4 spare ELF sites - fit with up to 128 channels AI, AO or DIO.
  • White Rabbit timing included.

Many combinations possible, examples shown:

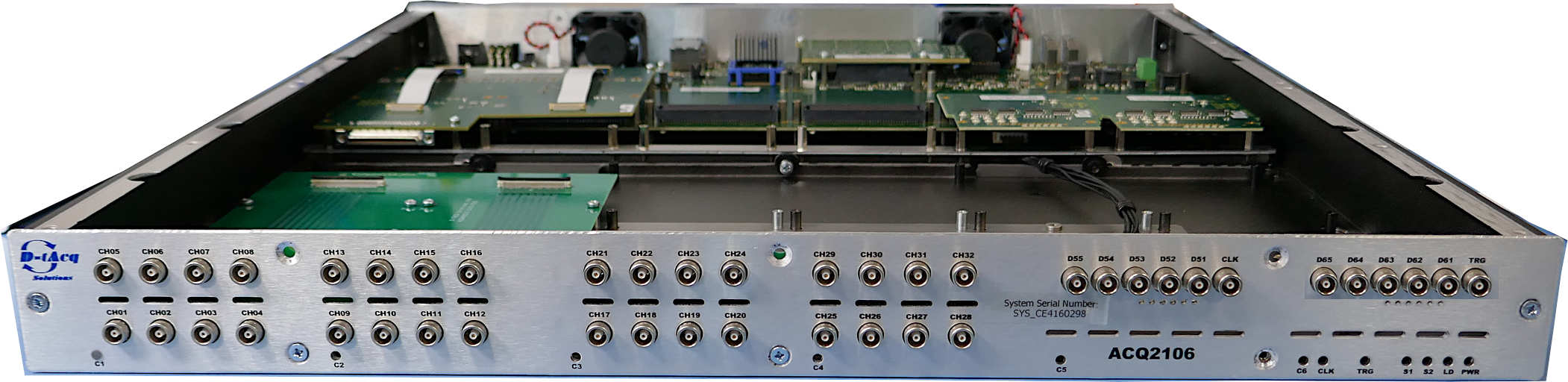

  • ACQ2106-4xACQ423-2xPG4-TIGA
    • 128AI, 200kSPS
    • 2 x 4 channel PG, CLKOUT, TRGIN

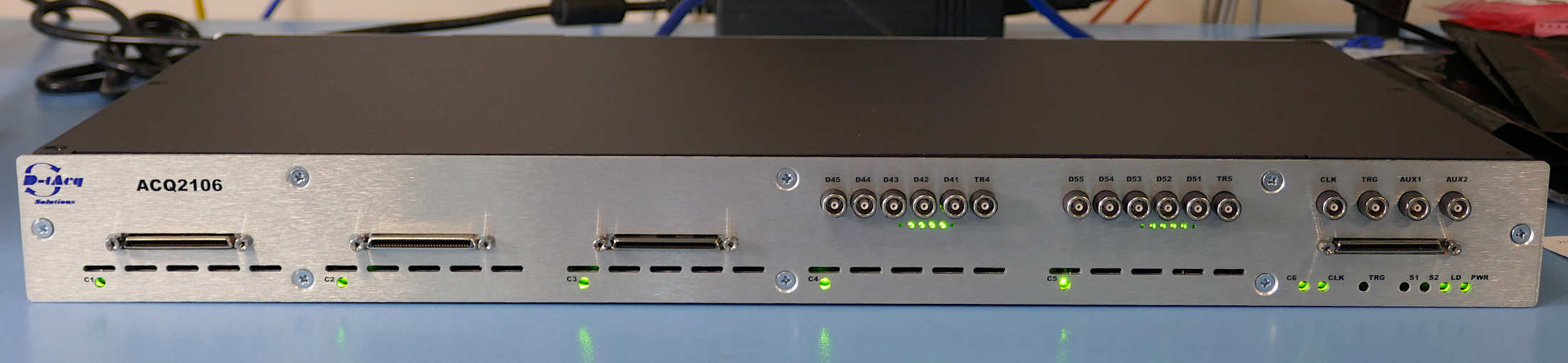

  • ACQ2106-2xACQ482-2xPG5-TIGA
    • 32AI, 80MSPS
    • 2 x 5 channel PG, TRGIN
